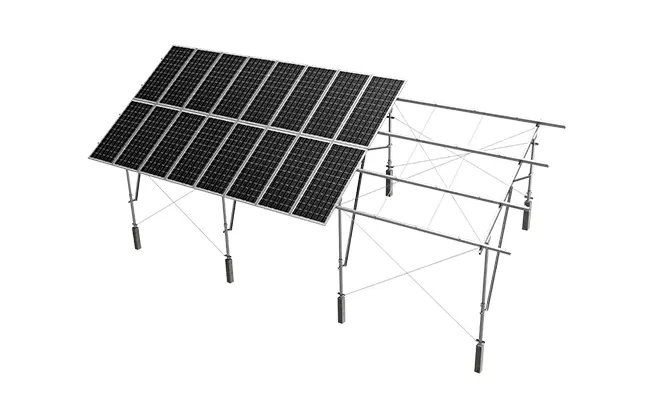

Designed to fit various terrains including high mountain, steep slopes and complex land, making it versatile for different environments. Wide spans and specific configurations allow for installation in diverse settings, from flat lands to hilly areas, ensuring broad applicability.
By accommodating more panels in a centralized area and wider panel layouts, it maximizes energy output per unit area and increases the total energy generation capacity per square meter.
Framed PV modules, frameless PV modules
Solar power stations, industrial parks and other large-scale power generation projects.

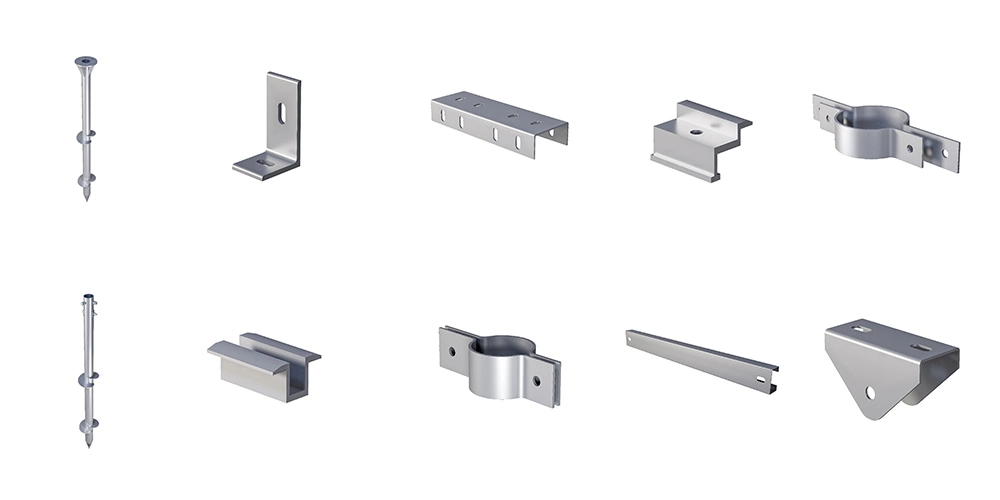

Poles, inclined beams, purlins, slant support, hoops, etc.
Ganzi (Garzê) Tibetan Autonomous Prefecture Project
Materials: Hot Dipped Galvanized/ Hot Dip Zn-AL-MG Alloy Coated Steel
Service life: 25 years
Maximum wind load: 0.8kN/m²
Maximum snow load: 0.8kN/m²
Foundation type: Ground Screw/Cast-In-Place Pile/Precast Piles
Angle: 5~60°
